Watercut RX Machine

Watercut Technology, Pastry Innovation

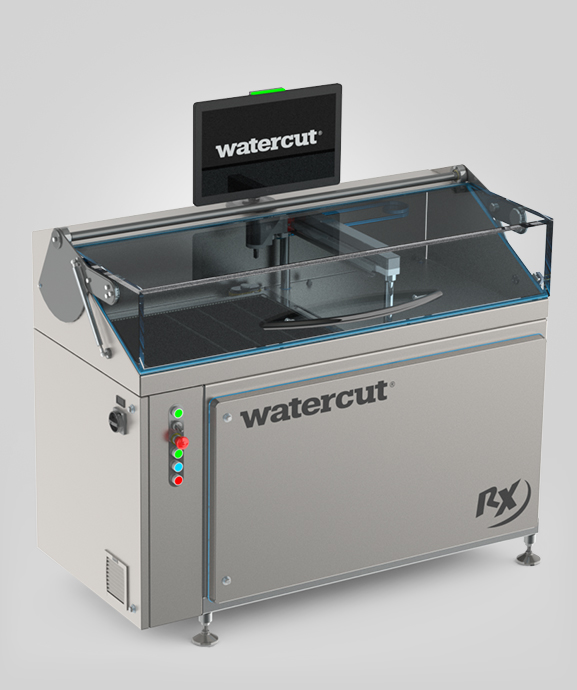

The Watercut RX Machine is a compact, professional waterjet cutting machine designed for precision pastry portioning. It uses high-pressure waterjet technology with adjustable pressure up to 3500 bar to cleanly cut both fresh and frozen products, from cakes to chocolate pieces. Featuring a user-friendly 22″ touchscreen, programmable cut patterns, automatic jet height adjustment, and an energy-saving ECO mode, it delivers consistent, repeatable results with low noise and easy maintenance. Built for versatility and efficiency, the Watercut RX helps bakeries and pastry labs improve portion accuracy, reduce waste, and boost productivity. For more information, please call our sales department at 908-295-5981 or email us at chris@westmerebakingequipment.com. Click here to request more information and a price quote.



Watercut RX Machine

The Watercut RX Machine is a compact, professional waterjet cutting machine that delivers precise, clean cuts on both fresh and frozen pastries using high-pressure waterjet technology. With an intuitive touchscreen interface and programmable cut patterns, it boosts consistency, portion accuracy, and productivity in bakery and pastry operations.



TECHNICAL SPECIFICATIONS:

  • CUTTING AREA:

    60 x 40 cm (x 100 mm) / 24″ x 16″ (x4″)

  • CUTTING POWER :

    1500 – 3500 bar / 0.12 – 0.178 mm

  • DIMENSIONS:

    150 x 70 x 145 (length x width x height cm)

Watercut RX Machine Brochure

KEY FEATURES:

  • Compact Footprint – One of the smallest professional waterjet cutters on the market, fitting easily into tight pastry lab spaces with a footprint of 150 × 70 × 145 cm.

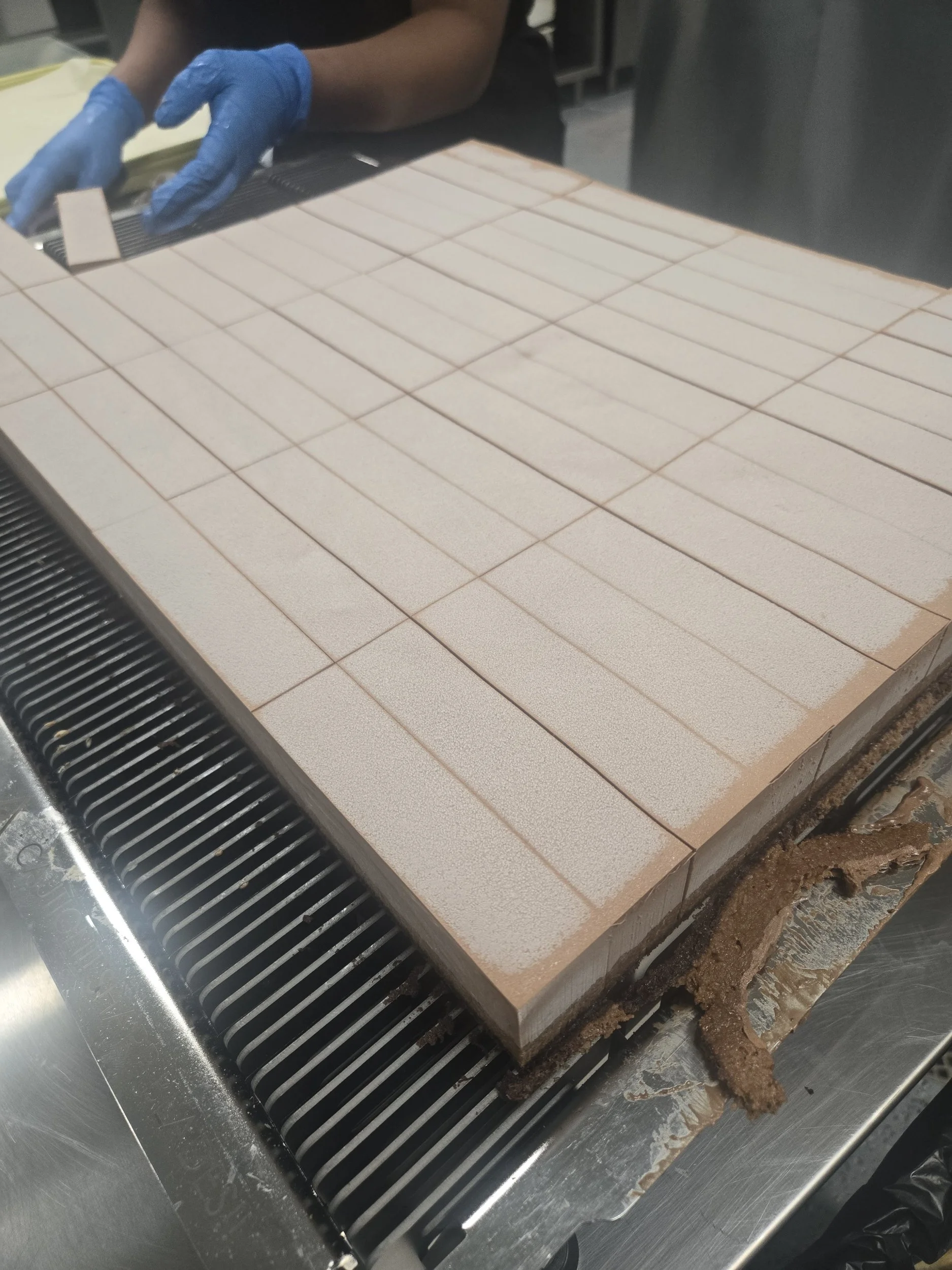

  • Standard Tray Size Compatibility – Designed to cut products on standard 60 × 40 cm trays (24″ × 16″).

  • High-Pressure Waterjet Cutting – Adjustable cutting pressure from 1500 to 3500 bar for precise control across a range of products from soft fresh cakes to frozen goods.

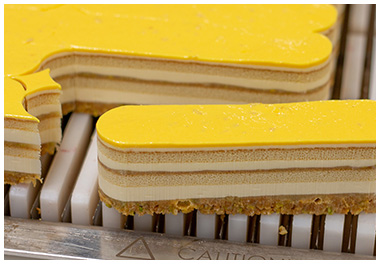

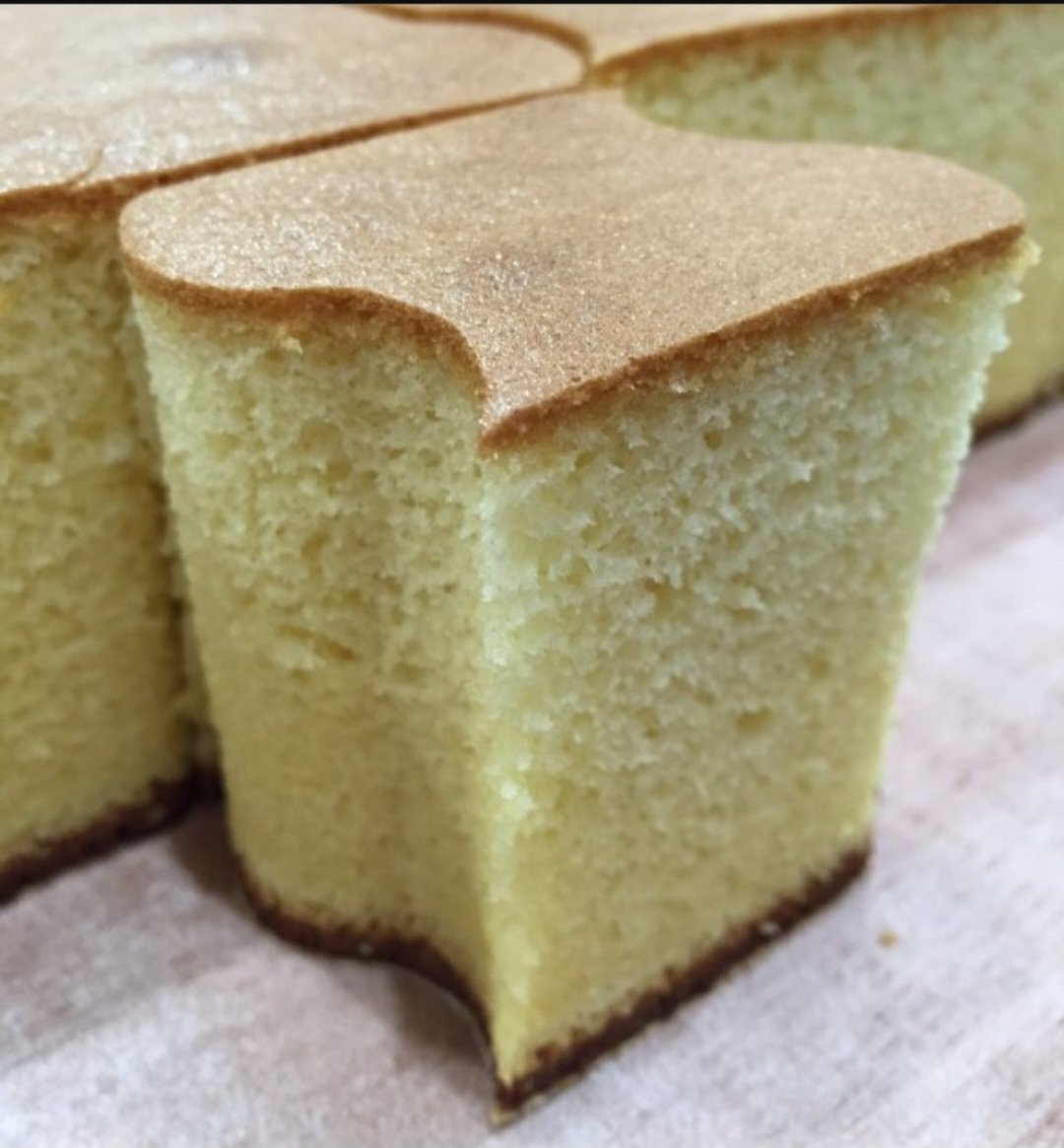

  • Versatile Product Cutting – Capable of cutting both fresh and frozen pastries, including chocolate decorations and delicate cake layers.

  • ECO Mode for Reduced Energy Use – Energy-saving mode limits pump power to lower electricity consumption during cutting cycles.

  • Programmable 22″ Touchscreen Interface – Intuitive touchscreen allows creation, editing, and storage of cutting programs for consistent results.

  • Automatic Pressure Adjustment & ON/OFF Valve – On-board control lets operators start/stop the high-pressure jet mid-program for detailed internal cuts.

  • Easy Maintenance Design – Front-side access and internal drain filter simplify service and cleaning routines.

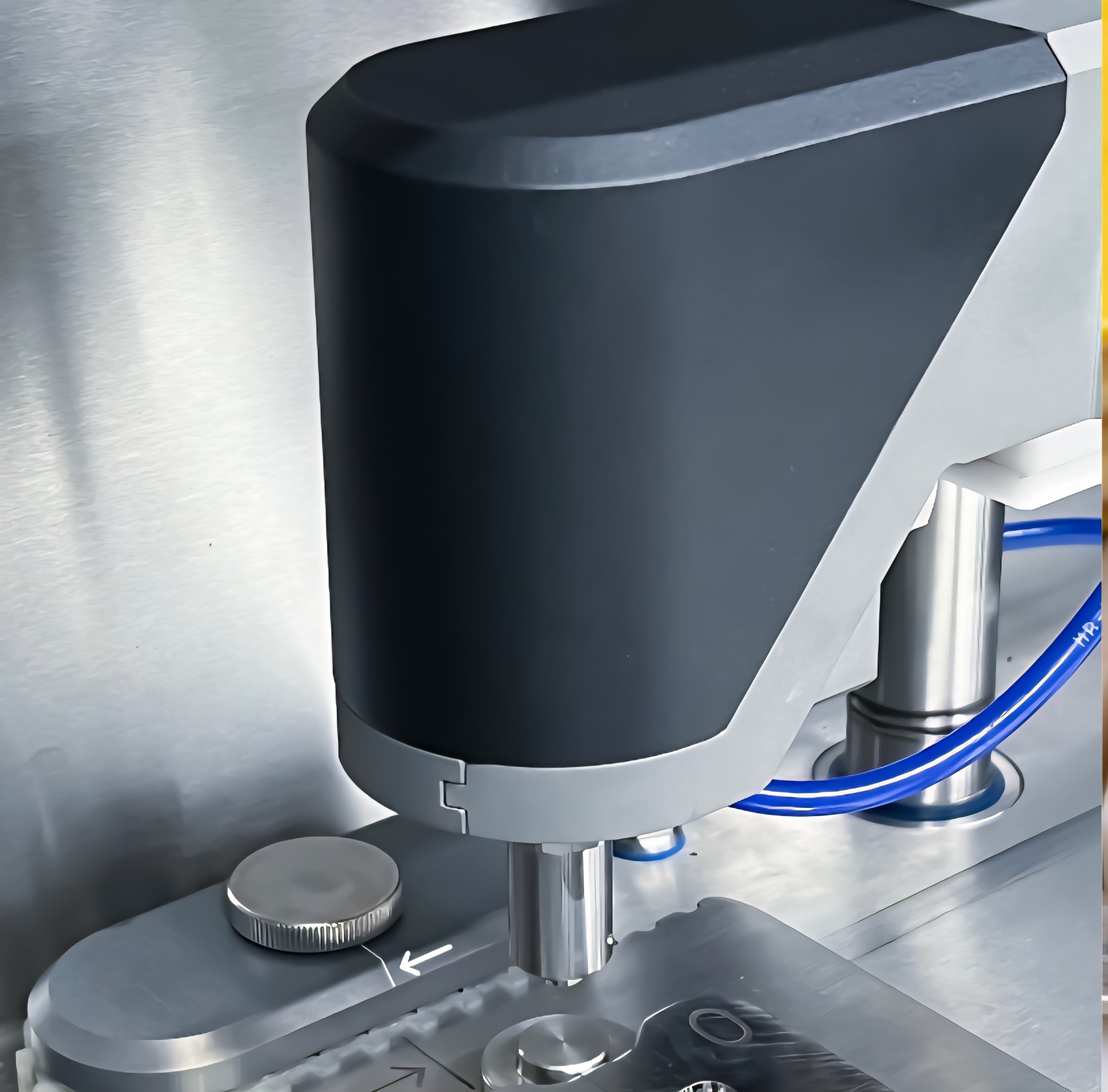

  • Automatic Jet Height Adjustment – System automatically adjusts waterjet height for cutting through products up to ~100 mm thick.

  • Low Noise Operation – Designed for quieter performance (around ~70 dB), making it suitable for lab environments.
